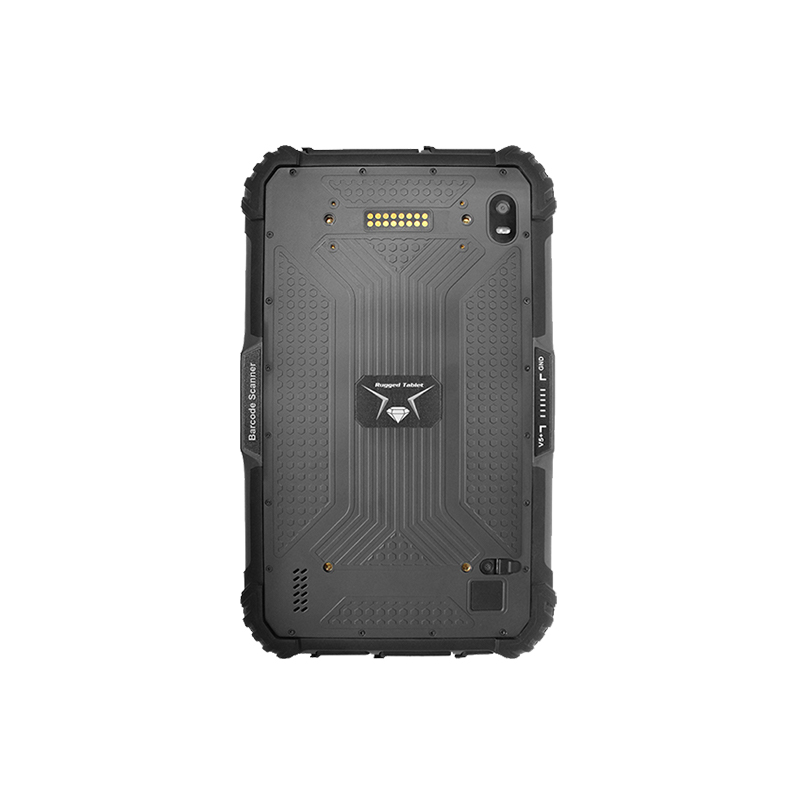

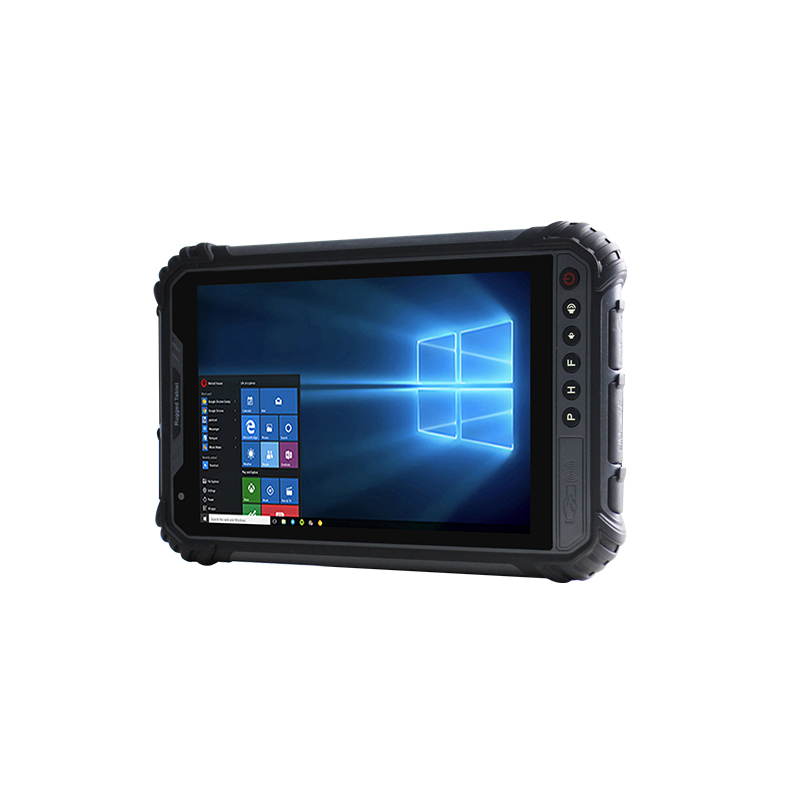

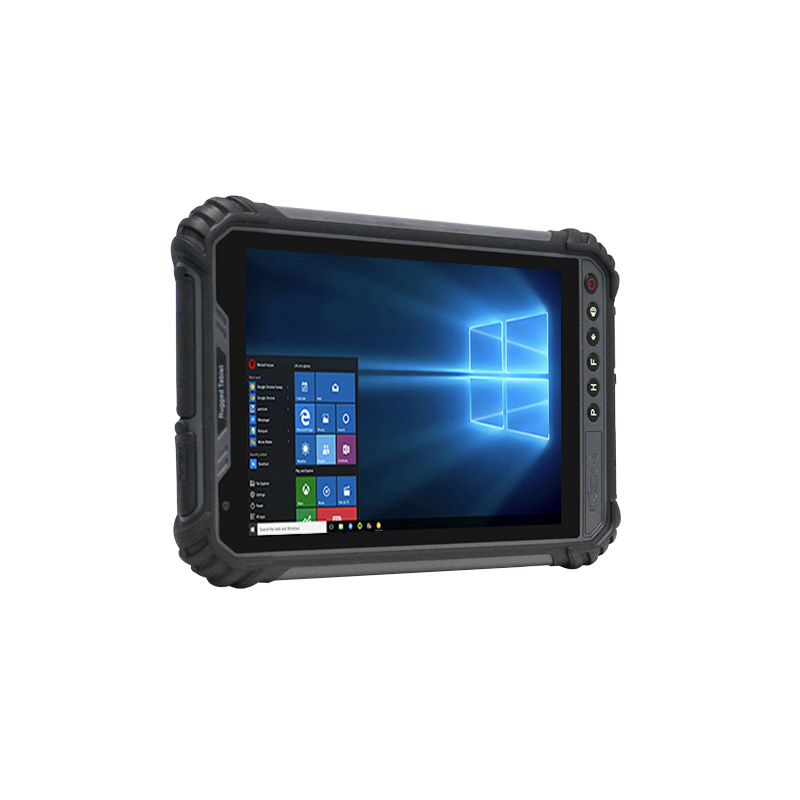

ST9-W

适用于物流、工业等场景的坚固平板电脑：配备视窗10和四核处理器，具有高亮度屏幕，支持多模通信，功能实用；提供IP65保护和宽温度适应性，具有可扩展功能，使其成为工业环境的耐用工具。

技术支持

E-mail: marketing-01@sincoole.com

热线电话: 0755-2302 3855

获取报价

添加到报价列表

产品概述

ST9-W是一款8英寸加固型平板电脑，搭载英特尔Cherry Trail Z8350四核处理器（睿频可达1.92GHz），运行Windows 10专业版（可选家庭版/IoT版）。存储配置为4GB/64GB，配备8英寸1200×1920分辨率IPS显示屏（最大亮度400尼特），前置200万像素+后置500万像素摄像头，内置7800mAh电池（支持7.5小时视频播放），支持4G LTE通信、WiFi 5及蓝牙4.2。产品具备HDMI输出接口、丰富的USB接口及IP65防尘防水等级，为基于Windows系统的工业及企业现场应用提供稳定可靠的性能支持。

核心特性

搭载Windows 10专业版（可选家庭版/IoT版），英特尔Cherry Trail Z8350处理器（主频1.44GHz，睿频1.92GHz）
配备Intel HD Graphics 400核芯显卡，8英寸1200×1920分辨率IPS显示屏（最大亮度400尼特）
4GB/64GB存储配置，7800mAh大容量电池，支持7.5小时视频播放
前置200万像素+后置500万像素摄像头，支持手写笔及湿手触控
4G LTE通信（SLM770A模块），英特尔Stone Peak 3165 WiFi/蓝牙二合一模块
IP65防尘防水等级，1.2米抗跌落能力（通过MIL-STD-810G认证）
丰富接口配置：HDMI、USB 3.0×2、USB 2.0×1、RS232、弹针扩展接口
可选配超高频RFID（M-500/M-301）、一维/二维条码扫描、指纹识别及高精度GPS（UM960）

技术参数（ST9-W）

操作系统	Windows 10专业版（可选Windows 10家庭版/IoT版）
中央处理器	英特尔Cherry Trail Z8350（四核四线程；主频1.44GHz）- 睿频可达1.92GHz
图形处理器	Intel HD Graphics 400
运行内存/机身存储	4GB/64GB
显示屏	8英寸IPS屏，1200×1920分辨率；400尼特（最大值）
触摸屏	10点触控，支持手写笔，支持湿手触控
摄像头	前置：200万像素；后置：500万像素
电源与电池	7800mAh；3.8V；充电时间：3小时30分钟；使用时长：7小时30分钟（50%音量、60%亮度下播放本地1080P视频）
无线广域网	时分双工长期演进：B40；频分双工长期演进：B1/B2/B3/B4/B5/B7/B8/B28；宽带码分多址：B1/B2/B4/B5/B8；全球移动通信系统：B2/B3/B5/B8 模块：SLM770A（北美地区为EC25-AUX）
定位系统	北斗、GPS、格洛纳斯（可选高精度GPS：UM960模块）
无线网络	802.11a/b/g/n/ac协议（2.4G/5G双频），支持无线热点（移动AP）；模块：英特尔Stone Peak 3165（WiFi/蓝牙二合一）
蓝牙	4.2版本
近场通信	13.56兆赫兹，感应距离：1-3厘米；支持ISO14443 TYPE A协议
传感器	光线传感器、加速度传感器、重力传感器

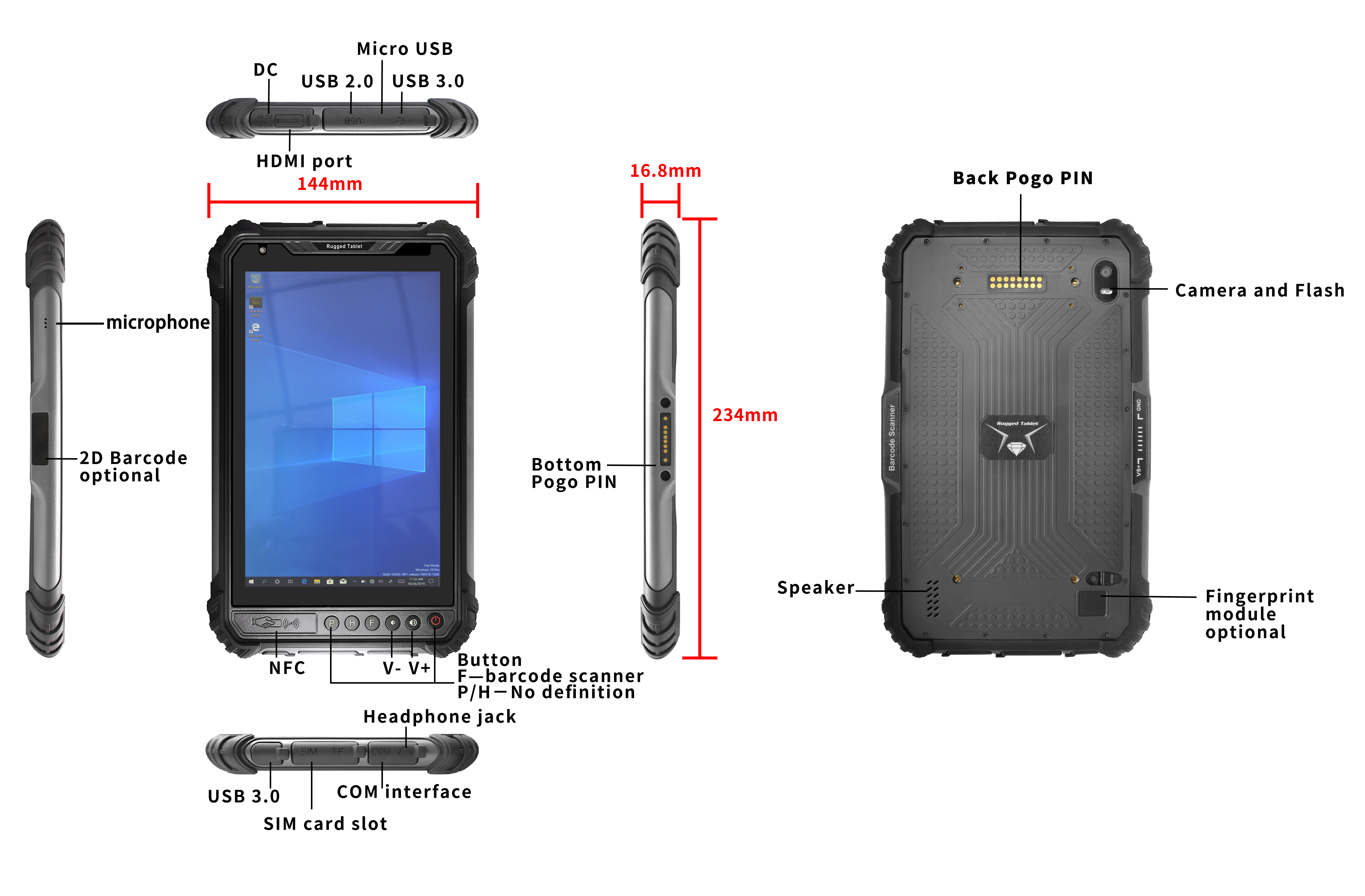

尺寸	236×144×17.4毫米
重量	670±20克
输入/输出接口	HDMI接口×1，SIM卡槽×1，RS232接口×1（迷你USB），耳机接口×1，直流电源接口×1（3.5×15毫米），USB-A接口：USB 3.0×2 + USB 2.0×1 底部弹针接口：USB 2.0、充电、RS232 背部弹针接口：USB 2.0、RS232
一维/二维条码	可选配：NLS-N1 / M1 / SE2707
超高频RFID	可选配M-500：美版（902-928兆赫兹，读取距离3-5米）/欧版（865-868兆赫兹，读取距离3-5米）可选配M-301：美版（902-928兆赫兹，读取距离5-8米）/欧版（865-868兆赫兹，读取距离5-8米）
指纹识别	可选配：ZAZ-0A0 / 1020A
防护等级	IP65防尘防水，1.2米抗跌落
认证	MIL-STD-810G、CE、FCC、3C
工作/存储温度	存储：-40℃至60℃；工作：-20℃至55℃

应用场景

🖥️

Windows工业控制

📊

现场数据处理

📍

高精度GPS导航

🏭

企业现场服务

ST9-T

ST9-Q3
