ST9-R2安卓12

ST9-R2安卓坚固型平板电脑适用于重工业：重量轻，易于握持，适合生产线检查/设备维护；国内供应链降低成本，支持批量部署；指纹+实名认证+软硬件安全架构、IP65防护和耐用性使其成为高性能、高性价比、国产的重工业可控移动终端。

技术支持

E-mail: marketing-01@sincoole.com

热线电话: 0755-2302 3855

获取报价

添加到报价列表

产品概述

ST9-R2A是一款8英寸坚固型平板电脑，采用Rockchip RK3588八核处理器（4×Cortex-A76@2.4GHz + 4×Cortex-A55@1.8GHz），运行Android 12.0系统。具备灵活存储组合（8GB/256GB、16GB/256GB 或 8GB/512GB、16GB/512GB 可选）、8英寸1200×1920 IPS显示屏（标准版430nits、高亮度1000nits可选）、500万像素前置/1300万像素后置摄像头（带闪光灯）、5000mAh 7.7V电池、4G LTE网络、WiFi 6及蓝牙5.0。配备丰富接口（HDMI、USB 3.0×2）、IP65防护等级与扩展模块，为工业物联网及多媒体应用提供高性能解决方案。

核心特性

Android 12.0系统，搭载Rockchip RK3588（4×A76@2.4GHz + 4×A55@1.8GHz）八核处理器
ARM Mali G610图形处理器，8英寸1200×1920 IPS显示屏（标准版430nits、高亮度1000nits可选）
灵活存储组合：8GB/256GB、16GB/256GB（8GB/512GB、16GB/512GB 可选）
500万像素前置 + 1300万像素后置摄像头（带闪光灯），支持手写笔/湿手触控
4G LTE（SLM770A模块）、WiFi 6（802.11ax）及蓝牙5.0
IP65防尘防水等级，1.2米防跌落（符合MIL-STD-810G标准）
丰富接口：HDMI、USB 3.0×2、USB 2.0×1、RS232、Type-C（OTG/快充）
可选配备：超高频无线射频识别（UHF RFID，型号M-500/M-301）、1D/2D条码扫描（NLS-N1/M1/SE2707）及指纹识别功能

技术规格 (ST9-R2A)

操作系统	Android 12.0
处理器	Rockchip RK3588（八核；2.4GHz）- Cortex-A76×4 @2.4GHz、Cortex-A55×4 @1.8GHz
图形处理器	ARM Mali G610
内存/存储空间	8GB/256GB、16GB/256GB（8GB/512GB、16GB/512GB 可选）
显示屏	8英寸IPS，1200×1920分辨率；标准版430nits；高亮度1000nits 可选
触控屏幕	10点触控、支持手写笔、支持湿手操作
摄像头	前置：500万像素；后置：1300万像素（带闪光灯）
电源与电池	5000mAh；7.7V（38.5Wh）
移动网络	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66；LTE-TDD: B40；WCDMA: B1/B2/B4/B5/B8；GSM: 850/900/1800/1900 模块：SLM770A（北美地区为EC25-AUX）
卫星定位	北斗（BDS）、GPS、格洛纳斯（GLONASS）
无线网络	802.11a/b/g/n/ac/ax（2.4G/5G双频），支持无线热点（Mobile AP）；支持WiFi 6；WiFi/蓝牙二合一
蓝牙	5.0版本
近场通讯（NFC）	13.56 MHz，识别距离：1-3cm；支持ISO/IEC 14443A/B；ISO/IEC 15693协议
传感器	光传感器、磁传感器、压力传感器、重力传感器、距离传感器、加速度传感器、陀螺仪、震动马达
尺寸	236×144×17.4mm
重量	700±50g

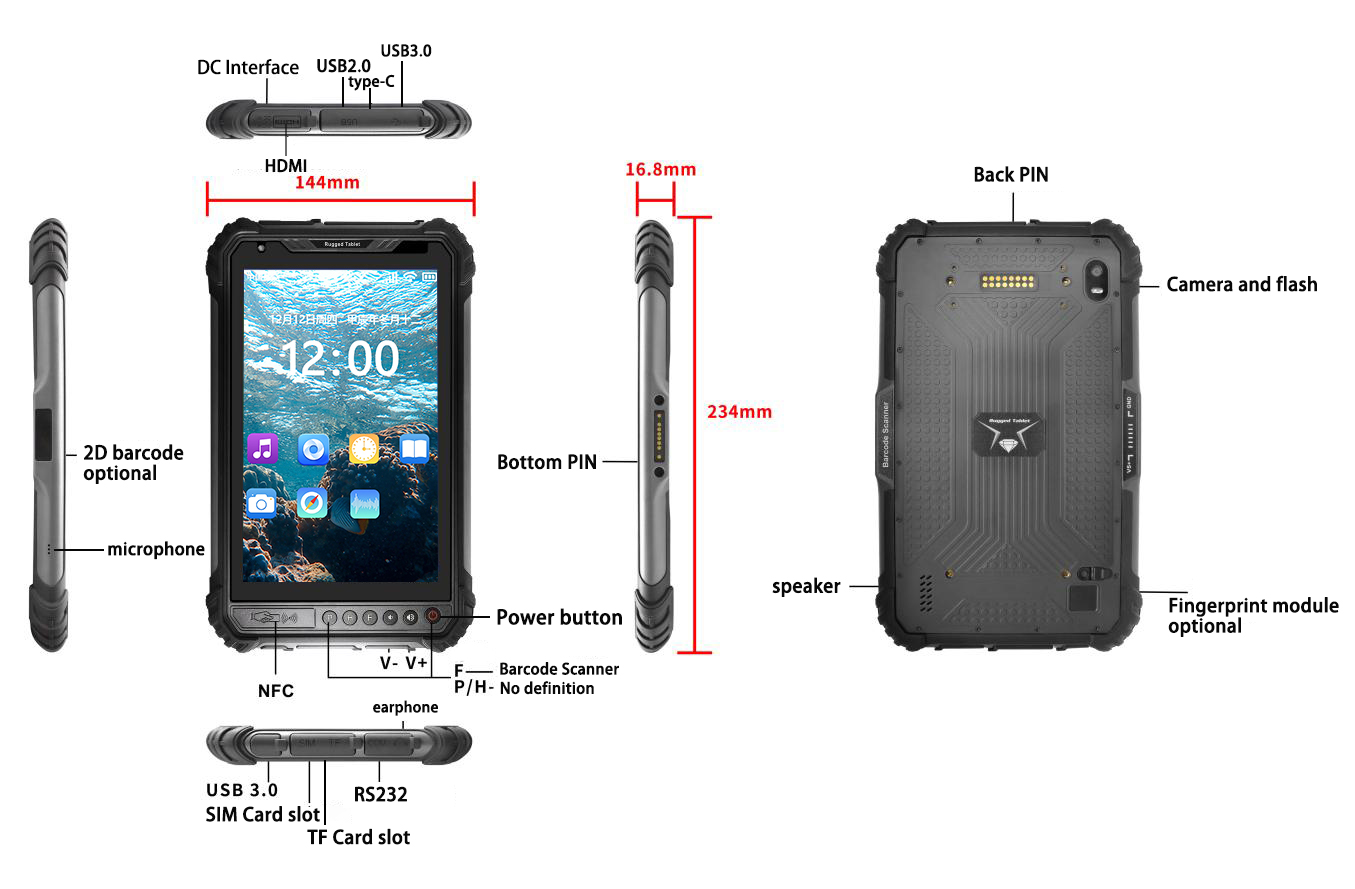

输入/输出接口	Type-C 1（OTG/快充）、SIM卡插槽1、TF卡插槽1、耳机接口1、直流电源接口1（4.015mm）、USB 2.0 1、USB 3.0 2、RS2321（mini-USB接口）、HDMI1 底部弹针接口：USB 2.0；充电；RS232 背部弹针接口：USB 2.0；RS232
1D/2D条码扫描	可选：NLS-N1 / M1 / SE2707
超高频无线射频识别（UHF RFID）	M-500 可选：美国规格（902-928MHz，识别距离3-5米）/ 欧洲规格（865-868MHz，识别距离3-5米） M-301 可选：美国规格（902-928MHz，识别距离5-8米）/ 欧洲规格（865-868MHz，识别距离5-8米）
指纹识别	可选：ZAZ-0A0 / 1020A
防护等级	IP65防尘防水，1.2米防跌落
认证	MIL-STD-810G、CE、FCC、3C
温度范围	存储：-40°C 至 60°C；工作：-20°C 至 55°C

应用场景

🏭

工业物联网控制

📺

多媒体显示

📦

物流与仓储

🔧

现场维护
