首页 > 产品展示 > 坚固型平板 > ST9 系列

产品展示

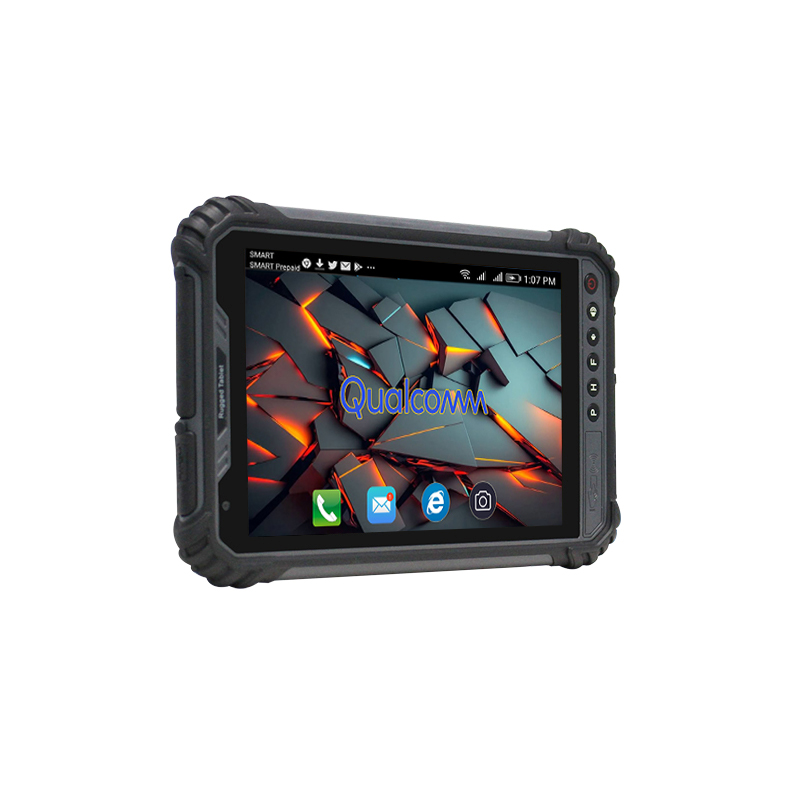

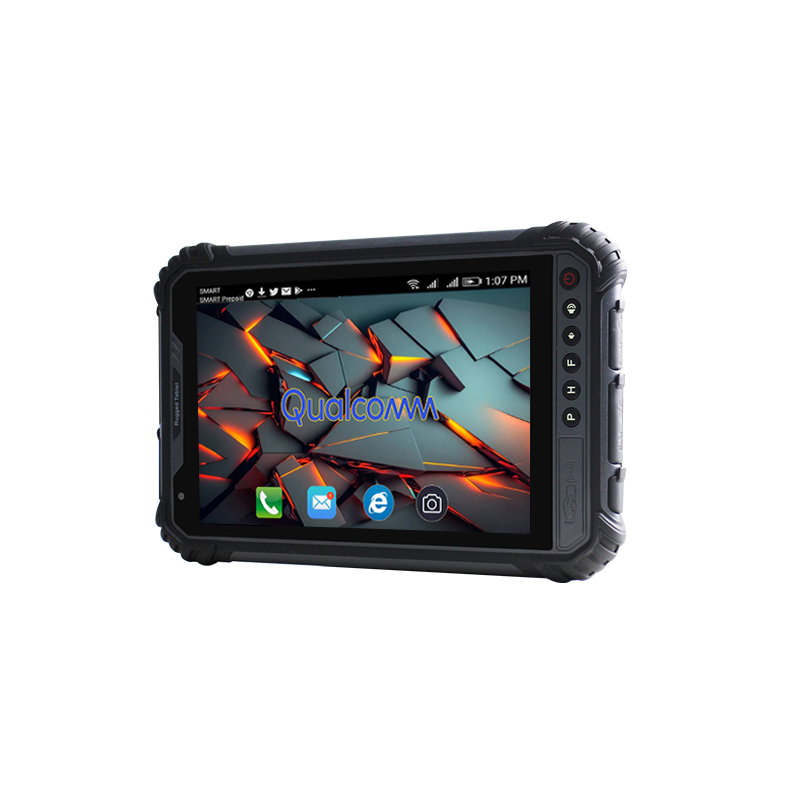

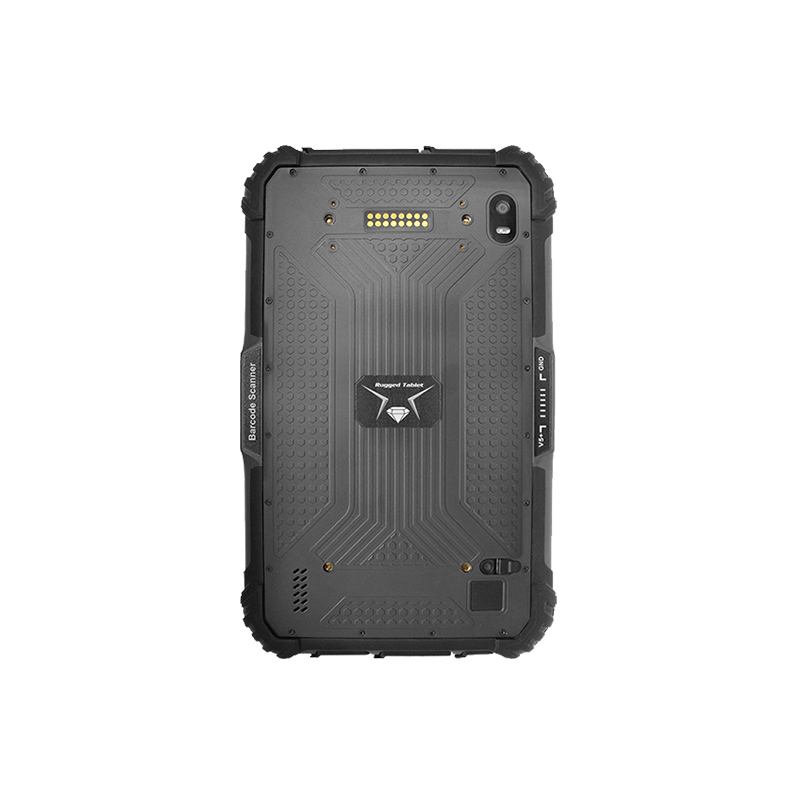

ST9-Q3

适用于多种场景的坚固耐用的三防平板电脑：提供强大流畅的性能、大屏幕和全面的通信能力，提供卓越的操作体验；具有IP65防护和耐用属性，轻松应对复杂环境。其可扩展的功能使其成为跨各种应用的可靠高效助手。

技术支持

E-mail: marketing-01@sincoole.com

热线电话: 0755-2302 3855

获取报价

添加到报价列表

产品概述

ST9-Q3是一款8英寸加固型平板电脑，搭载高通5G SOC QCM4490八核处理器（2×Kryo 金牌核心@2.4GHz + 6×Kryo 银牌核心@1.95GHz），运行Android 13操作系统。存储配置为8GB/128GB（可选4GB/64GB或8GB/256GB），配备8英寸1200×1920分辨率IPS显示屏，前置800万像素+后置1600万像素摄像头（带闪光灯），内置10000mAh大容量电池，支持5G多频段通信、WiFi 6及蓝牙5.2。产品具备IP65防尘防水等级、1.2米抗跌落能力及丰富的扩展模块，为5G物联网及工业场景提供高性能解决方案。

核心特性

搭载Android 13系统，高通5G SOC QCM4490处理器（2×Kryo 金牌核心@2.4GHz + 6×Kryo 银牌核心@1.95GHz）
配备Adreno 613图形处理器，图形性能强劲；8英寸1200×1920分辨率IPS显示屏
灵活存储配置：8GB/128GB（可选4GB/64GB、8GB/256GB），10000mAh大容量电池
前置800万像素+后置1600万像素摄像头（带闪光灯），支持手写笔及湿手触控
5G多频段通信（频分双工/时分双工），支持WiFi 6（802.11ax协议）及蓝牙5.2
IP65防尘防水等级，1.2米抗跌落能力（通过MIL-STD-810G认证）
丰富工业接口：Type-C、USB 2.0×2、RS232、弹针扩展接口，适配工业场景需求
可选配超高频RFID（M-500/M-301）、一维/二维条码扫描及指纹识别功能

技术参数（ST9-Q3）

操作系统	Android 13
中央处理器	高通5G SOC QCM4490（八核；主频2.4GHz）- Kryo 金牌核心×2 @2.4GHz，Kryo 银牌核心×6 @1.95GHz
图形处理器	Adreno 613
运行内存/机身存储	8GB/128GB（可选4GB/64GB、8GB/256GB）
显示屏	8英寸IPS屏，1200×1920分辨率；亮度400尼特
触摸屏	10点触控，支持手写笔，支持湿手触控
摄像头	前置：800万像素；后置：1600万像素（带闪光灯）
电源与电池	10000mAh；电压3.8V
无线广域网	5G-频分双工：N1/N3/N5/N7/N8/N20/N28；5G-时分双工：N38/N40/N41/N77/N78/N79 长期演进-频分双工：B1/B3/B5/B7/B8/B20/B26/B28；长期演进-时分双工：B38/B40/B41；宽带码分多址：B1/B5/B8
定位系统	北斗、GPS、格洛纳斯、伽利略
无线网络	802.11a/b/g/n/ac/ax（2.4G/5G双频），支持无线热点（移动AP）；兼容WiFi 6协议
蓝牙	5.2版本
近场通信	13.56兆赫兹，感应距离：1-3厘米；支持ISO/IEC 14443A/B、ISO/IEC 15693协议
传感器	光线传感器、磁力传感器、压力传感器、重力传感器、距离传感器、加速度传感器、陀螺仪、马达
尺寸	236×144×17.4毫米
重量	630±20克
输入/输出接口	Type-C接口×1（支持OTG），SIM卡槽×1，TF卡槽×1，耳机接口×1，直流电源接口×1（3.5×15毫米），USB 2.0接口×2，RS232接口×1（迷你USB）底部弹针接口：USB 2.0、充电、RS232 背部弹针接口：USB 2.0、RS232
一维/二维条码	可选配：NLS-N1 / M1
超高频RFID	可选配M-500：美版（902-928兆赫兹，读取距离3-5米）/欧版（865-868兆赫兹，读取距离3-5米）可选配M-301：美版（902-928兆赫兹，读取距离5-8米）/欧版（865-868兆赫兹，读取距离5-8米）
指纹识别	可选配：ZAZ-0A0 / 1020A
防护等级	IP65防尘防水，1.2米抗跌落
认证	MIL-STD-810G、CE、FCC、3C
工作/存储温度	存储：-40℃至60℃；工作：-20℃至55℃

应用场景

5G物联网部署

🏭

智能工业

📷

高清图像检测

🌐

高速现场作业

ST9-W

ST9-A8
