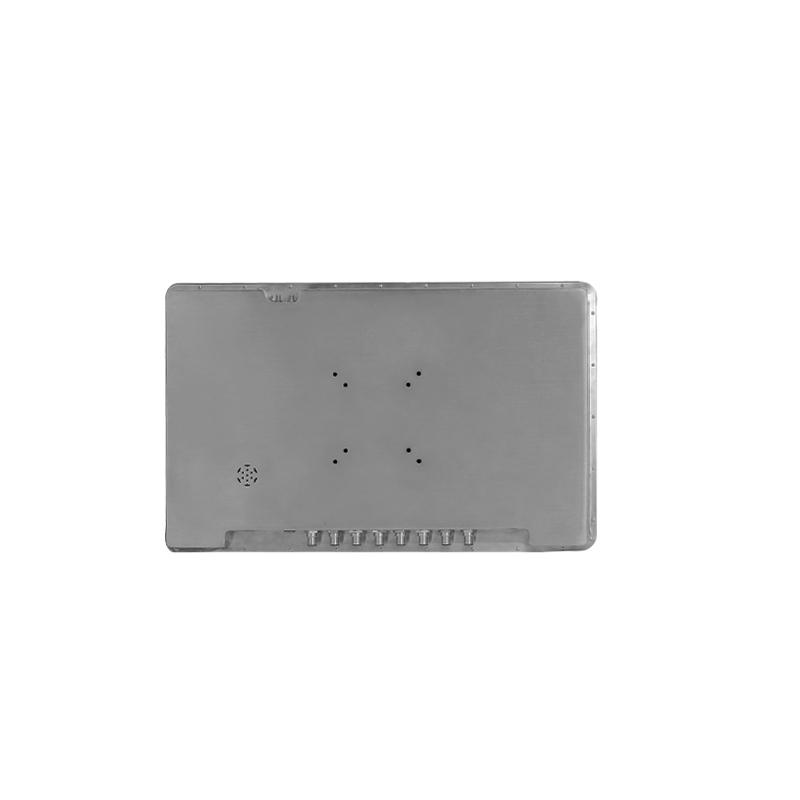

SP211

坚固的多系统防水工业PC：各种CPU（包括国产），21.5英寸HD屏幕，稳定的WiFi/蓝牙。IP65防水+不锈钢机箱，宽温度适应性（处理物流/工业场景）。丰富的接口-跨行业运行可靠。

技术支持

E-mail: marketing-01@sincoole.com

热线电话: 0755-2302 3855

获取报价

添加到报价列表

产品概述

SP211是一款21.5英寸大屏幕工业加固平板电脑，搭载Windows 11 Pro/IoT/Home操作系统（可选Windows 10），配备Intel® Celeron® J6412四核心处理器（2.00GHz，Turbo Boost可达2.60GHz，TDP 10W），并提供第6/7/8代Core系列或飞腾D2000处理器升级选项。支持内存/存储空间扩展（标配16GB/256GB，可选8GB/128GB/512GB），配备21.5英寸1080×1920分辨率TFT-LCD显示屏（亮度200-250nits）、10点触控功能、WiFi 4网络连接，以及双RS232串行端口的航空插头接口设计。产品具备IP65防尘防水等级、宽温工作环境（-20°C至55°C）与坚固耐用的结构设计（尺寸524×315.5×45mm/重量5300g），专为大尺寸工业监控与控制应用场景优化。

核心特性

支持多Windows操作系统（11 Pro/IoT/Home，可选Windows 10），搭载Intel Celeron J6412（2.00GHz/2.60GHz Turbo Boost），可升级第6/7/8代Core系列或飞腾D2000处理器
配备Intel UHD Graphics 16 EUs显示核心，支持内存（8GB/16GB）与存储空间（128GB/256GB/512GB）扩展，可部署高负载工业应用程序
21.5英寸1080×1920分辨率TFT-LCD显示屏（亮度200-250nits），10点触控功能，提供全面的工业操作可视化体验
支持WiFi 4（2.4G）无线网络，双RS232串行端口设计，可无缝整合传统工业设备
航空插头接口设计，丰富I/O接口：HDMI、USB3.0×2、USB2.0×1、以太网、DC-IN电源接口，完美契合工业现场需求
IP65防尘防水等级，宽温工作环境（-20°C至55°C），可适应恶劣工作条件
坚固结构设计（尺寸524×315.5×45mm），净重5300±50g（含配件重量5900±50g）
完整配件套组包含航空插头线材，可选配VESA安装支架，提供灵活的安装方式

技术规格（SP211）

操作系统	Windows 11 Pro / IoT / Home Windows 10 可选
处理器	Intel® Celeron® J6412（四核心，四线程；2.00GHz，Turbo Boost 2.60GHz；TDP 10W）可选第6/7/8代Core系列处理器、飞腾D2000处理器
显示核心	Intel UHD Graphics 16 EUs
内存/存储空间	16GB/256GB 内存：可选8GB；存储空间：可选128GB/512GB
液晶显示屏	21.5英寸；1080×1920分辨率；TFT-LCD面板亮度200nits（标准），250nits（最大值）
触控屏幕	10点触控
无线网络	802.11a/b/g/n 无线网络；无线AP（移动热点）；2.4G WiFi4
扬声器	可选配
尺寸	524×315.5×45mm
重量	5300±50g（主机净重） 5900±50g（主机+配件）
语言	多语言支持
输入/输出接口	DC-IN电源接口×1；HDMI×1；USB3.0×2；USB2.0×1；以太网×1；RS232串行端口×2（标准DB9接口）航空插头接口形式
按键	电源键
配件	包装盒；DC充电器（12V 4A）；WiFi天线×2；螺丝；航空插头线材×8 可选：VESA安装支架
多媒体（硬件解码）	图片浏览：BMP、JPG、GIF、PNG 视频格式：MEPG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG（最高支持1080P）音频格式：MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS（需授权）
防护等级	IP65
温度范围	储存温度：-30°C至60°C；工作温度：-20°C至55°C

应用场景

📺

工业监控中心

🏭

大型设备人机界面

🚦

过程控制车站

🖥️

工业指挥控制台
