SM5

SM5：高性价比的Android 11工业坚固手持终端。联发科八核，5.7英寸屏幕，4000mAh电池。支持扫描/NFC/北斗/GPS、4G/WiFi/蓝牙。IP65防护，1.5m防跌落，-25℃~50℃工作范围。可扩展存储，预算友好-物流/制药/仓储的理想选择。

技术支持

E-mail: marketing-01@sincoole.com

热线电话: 0755-2302 3855

获取报价

添加到报价列表

产品概述

SM5是一款5.7英寸加固型手持终端，搭载Android 11.0操作系统，配备联发科MT6765八核处理器（主频2.3GHz，由4颗1.8GHz Cortex-A53核心+4颗2.3GHz Cortex-A53核心组成）及IMG PowerVR GE8320图形处理器。该产品支持可扩展存储配置（4GB/64GB，可选6GB/128GB），配备5.7英寸720×1520分辨率显示屏（亮度450尼特）、前置500万/后置1300万像素带闪光灯摄像头、4000毫安时3.8伏特电池（支持14小时视频播放），支持4G LTE全球通网络及双麦克风降噪功能。产品符合IP68防尘防水等级、具备1.5米抗跌落能力，集成八合一传感器套件，采用紧凑型设计（尺寸155×77.7×13.3mm，重量240克），专为恶劣环境下的长续航Android移动数据采集场景优化。

核心特性

搭载Android 11.0系统，联发科MT6765八核处理器（2.3GHz主频，4+4 Cortex-A53核心架构），配备IMG PowerVR GE8320图形处理器
可扩展存储配置（4GB/64GB，可选6GB/128GB），灵活适配各类Android应用运行需求
5.7英寸720×1520分辨率显示屏（450尼特），十点触控+手写笔支持，输入精准高效
后置1300万像素带闪光灯摄像头，双麦克风（主麦+降噪麦）设计，沟通清晰无阻
4000毫安时大容量电池，2.5小时快充，视频播放续航可达14小时，满足长时作业需求
支持4G LTE多频段网络、双SIM卡（单待）、WiFi 5及蓝牙5.0，连接稳定全面
多种条码扫描模块可选（NLS-N1、M1、SE2707），适配多场景数据采集需求
IP68防尘防水、1.5米抗跌落，八合一传感器套件，恶劣环境适应能力强

技术参数（SM5）

操作系统	Android 11.0
中央处理器	联发科MT6765，八核；主频2.3GHz 4颗Cortex-A53 @1.8GHz + 4颗Cortex-A53 @2.3GHz
图形处理器	IMG PowerVR GE8320
运行内存/存储内存	4GB/64GB 可选6GB/128GB
显示屏	5.7英寸；分辨率720×1520；亮度450尼特
触摸屏	十点触控支持手写笔
摄像头	前置：500万像素；后置：1300万像素带闪光灯
电源与电池	4000毫安时；3.8伏特充电时长：2小时30分钟使用时长：约14小时（50%音量、60%亮度，播放本地1080P视频）
无线广域网	4G LTE、3G WCDMA、GSM 4G频段：FDD-LTE B1/B2/B3/B4/B5/B7/B8/B20；TDD-LTE B38/B39/B40/B41 WCDMA频段：B1/B2/B5/B8；GSM频段：B2/B3/B5/B8
定位系统	北斗、GPS、格洛纳斯
无线网络	802.11a/b/g/n/ac协议；支持无线AP（移动热点）；2.4G、5G双频
蓝牙	5.0版本
麦克风	灵敏度：-32±2分贝；输出阻抗：2.2千欧×1 双麦克风：主麦克风负责拾音，副麦克风负责降噪
扬声器	8欧姆 1.0瓦
近场通信（NFC）	13.56兆赫兹型号：PN553
传感器	光线传感器、地磁传感器、气压传感器、重力传感器、距离传感器、加速度传感器、陀螺仪、振动马达

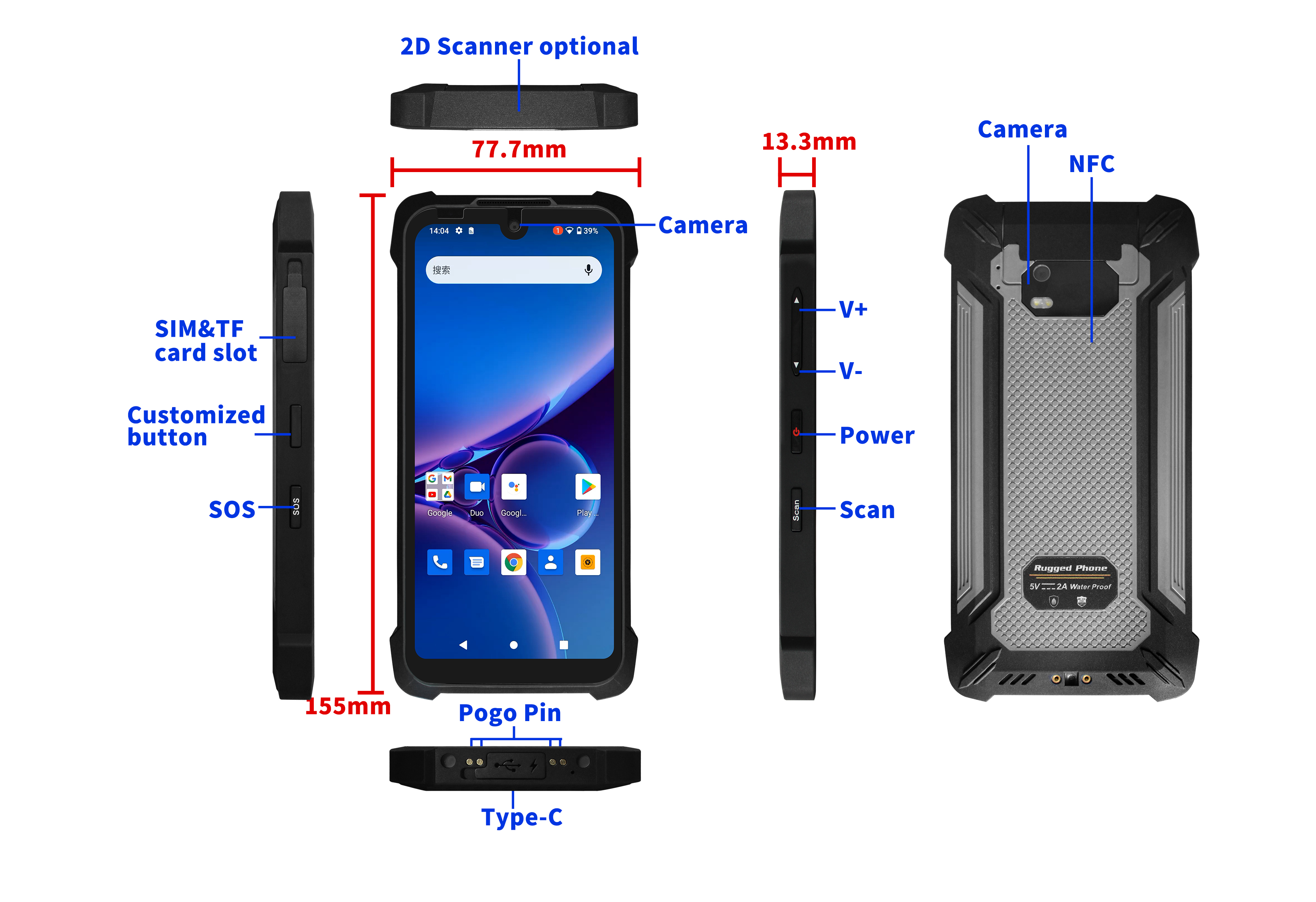

尺寸	155×77.7×13.3毫米
重量	240±20克
语言	多语言
输入/输出接口	Type-C×1（支持OTG）；SIM+TF卡或双SIM卡槽×2（双卡单待）底部4针磁吸顶针接口
按键	音量加减、电源、SOS紧急按键、扫描键、自定义按键
一维/二维条码扫描	可选：NLS-N1、M1、SE2707
配件	包装盒；充电器（5V 2A）；顶针；腕带
多媒体（硬件解码）	图片格式：BMP、JPG、GIF、PNG 视频格式：MEPG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG（最高1080P）音频格式：MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS（需授权）
防护等级	IP68防尘防水、1.5米抗跌落
认证	UN38.3、MSDS、CE
温度	存储温度：-40℃ 至 60℃；工作温度：-20℃ 至 55℃

应用场景

🔋

长续航现场作业

🏭

工业数据采集

🚛

物流运输

🌾

农业监测
